In this patent application (2024-163673), Canon is exploring some lesser-quality super telephoto primes. Could be good news for us peons that don’t want to drop 5 digits on a super-telephoto prime.

The designs seem interesting, yet simplistic, so I wouldn’t necessarily expect these lenses to cost that much.

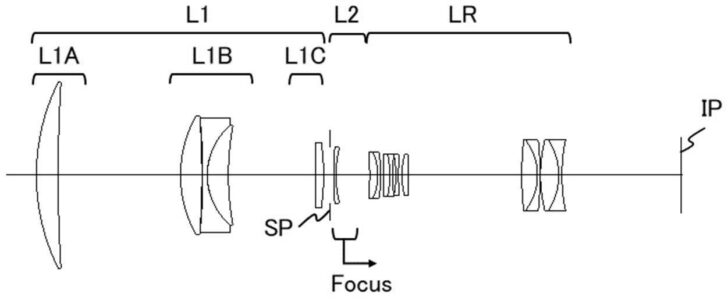

Canon RF 400mm F4.0

In this first design, we see elements that are consistent throughout all the designs in this patent application. This lens has a pretty basic design, and isn’t that heavy (the large front elements typically define a lot of the weight characteristics for super telephoto). With a back focus distance of 55mm, this lens is also very teleconverter-friendly.

Focal Length	388.73
F-Number	4.08
Half Angle of View	3.19
Image Height	21.64
Total Lens Length	310.74
Back Focus Distance	55.06

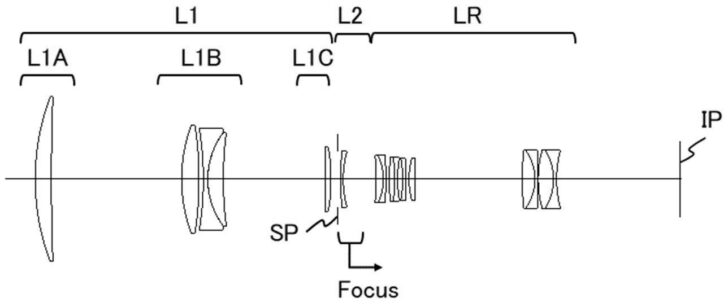

Canon RF 500mm F5.6

In a similar vein to the Canon RF 400mm F4.0, this lens is a little longer and slightly slower as it is a 500mm F5.6. Again, it’s teleconverter friendly with a 55mm back focus distance.

Focal Length	479.13
F-Number	5.65
Half Angle of View	2.59
Image Height	21.64
Total Lens Length	331.00
Back Focus Distance	55.35

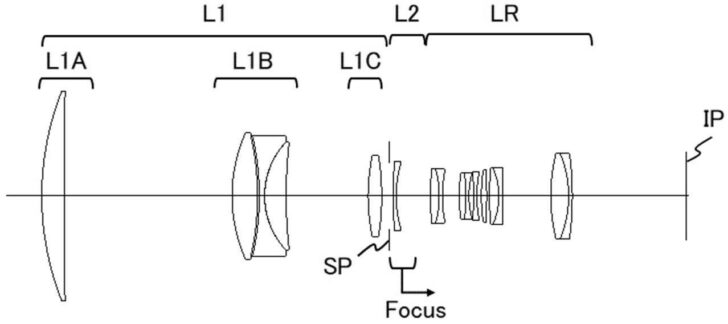

Canon RF 600mm F5.6

This embodiment shows a 600mm F5.6 with a single large front element, and again, teleconverter friendly with a 67mm back focus distance.

Focal Length	583.80
F-Number	5.65
Half Angle of View	2.12
Image Height	21.64
Total Lens Length	366.23
Back Focus Distance	67.52

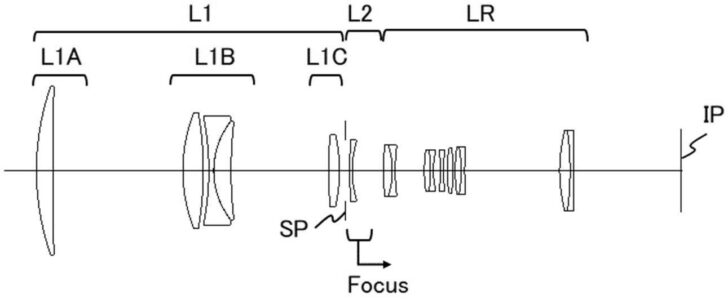

Canon RF 600mm F6.3

This embodiment shows a 600mm F6.3, I suspect slightly cheaper and lighter than the proceeding 600mm F5.6 It again, has a single large front element, and teleconverter friendly with a 70mm back focus distance.

Focal Length	584.06
F-Number	6.40
Half Angle of View	2.12
Image Height	21.64
Total Lens Length	366.13
Back Focus Distance	69.91

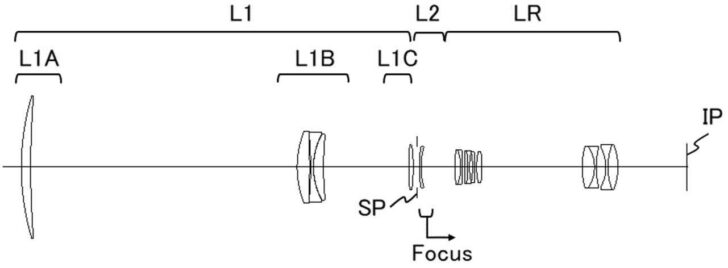

Canon RF 800mm F6.3

The longest lens in all the embodiments is this 800mm F6.3 showing a single large front element and a ton of space between that element in the next element group. I would suspect this lens would be easier to handhold as the center of balance would be nearer to the center of the lens. Again, it’s teleconverter friendly with a 62mm back focus distance.

Focal Length	789.38
F-Number	6.40
Half Angle of View	1.57
Image Height	21.64
Total Lens Length	600.18
Back Focus Distance	62.06

Source: Japan Patent Application 2024-163673
