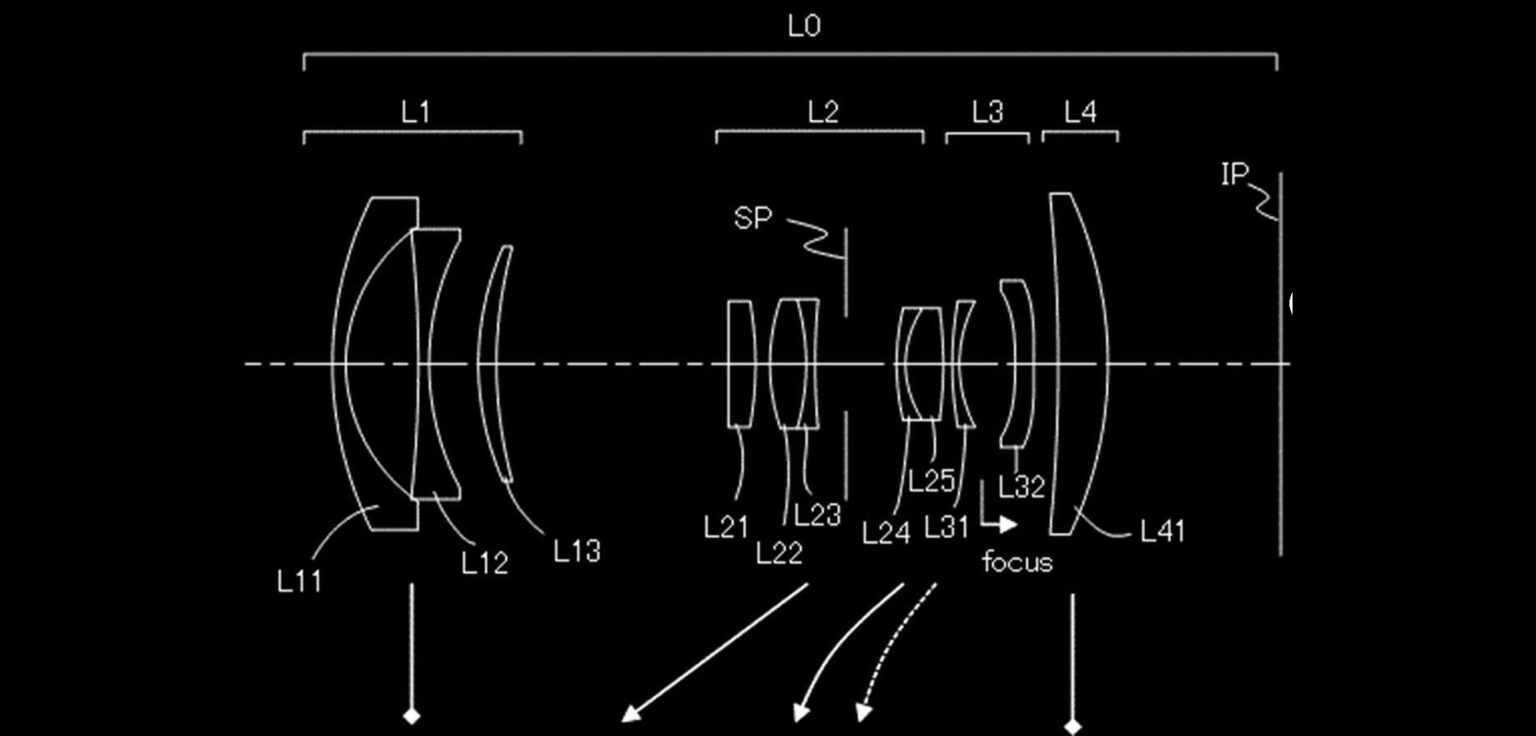

In this patent application (2024-166408), Canon looks to be investigating making some small power zoom kit lenses. Sony popularized this, and it would be interesting to see if Canon follows suit. The patent application intriguingly has both APS-C and full-frame lenses.
If you notice that none of the embodiments have the image height. So if you are curious on how we determined if it was APS-C or full frame, we went by the angle of view which of course is different for each focal length when you compare APS-C and full frame.
Also of interesting note is that these are small power zooms, it’s very likely that Canon will move away from it’s needing of a crazily expensive accessory for power zoom and have it directly in the lens.
Canon RF-S 14-30mm F4-6.3 PZ
In this lens is a very short zoom range APS-C lens that is also really slow. It has an internal zoom and a lens length of around 55mm, so quite compact (you have to subtract the focal plane distance of 20mm from the numbers below). That being said, I can’t see a 2.1x zoom doing well in this focal range.
| Wide Angle | Medium | Telephoto | |
| Focal Length | 14.40 | 20.07 | 29.10 |
| F-Number | 4.10 | 5.05 | 6.40 |
| Half Angle of View | 43.4 | 31.7 | 25.1 |
| Lens Total Length | 75.06 | 75.06 | 75.06 |
| Back Focus Distance | 11.78 | 11.78 | 11.78 |
Canon RF-S 12-30mm F4-6.3 PZ
This is another APS-C lens with a slightly wider focal length of 12mm. While it’s better than the prior embodiment – this would leave me wanting for just a little more on the wide end. But it’s pretty close to the 17-40mm focal that we used to have, so it would certainly some utility.
| Wide Angle | Medium | Telephoto | |
| Focal Length | 12.40 | 18.70 | 29.10 |
| F-Number | 4.10 | 5.13 | 6.40 |
| Half Angle of View | 47.9 | 34.5 | 25.2 |
| Lens Total Length | 82.67 | 82.67 | 82.67 |
| Back Focus Distance | 11.71 | 11.71 | 11.71 |
Canon RF 20-50mm F4-5.6 PZ
This is a lens I could certainly see Canon doing, as a replacement for its Canon RF 24-50mm RF lens f/4-5.6 that already exists. This lens is just a little wider, faster and has power zoom. Sounds like a good Mark II to me.
| Wide Angle | Medium | Telephoto | |
| Focal Length | 20.60 | 31.11 | 48.50 |
| F-Number | 4.10 | 5.20 | 5.88 |
| Half Angle of View | 46.4 | 33.2 | 24.2 |
| Lens Total Length | 106.52 | 106.52 | 106.52 |
| Back Focus Distance | 19.41 | 19.41 | 19.41 |
As with all patent applications, this is a look into Canon’s research and may not end up as an actual product.
Source: Japan Patent Office 2024-166408
