    Canon RF 200-500mm f/4L IS USM spotted in new patent application

    By Updated:11 Comments Canon Patents 3 Mins Read

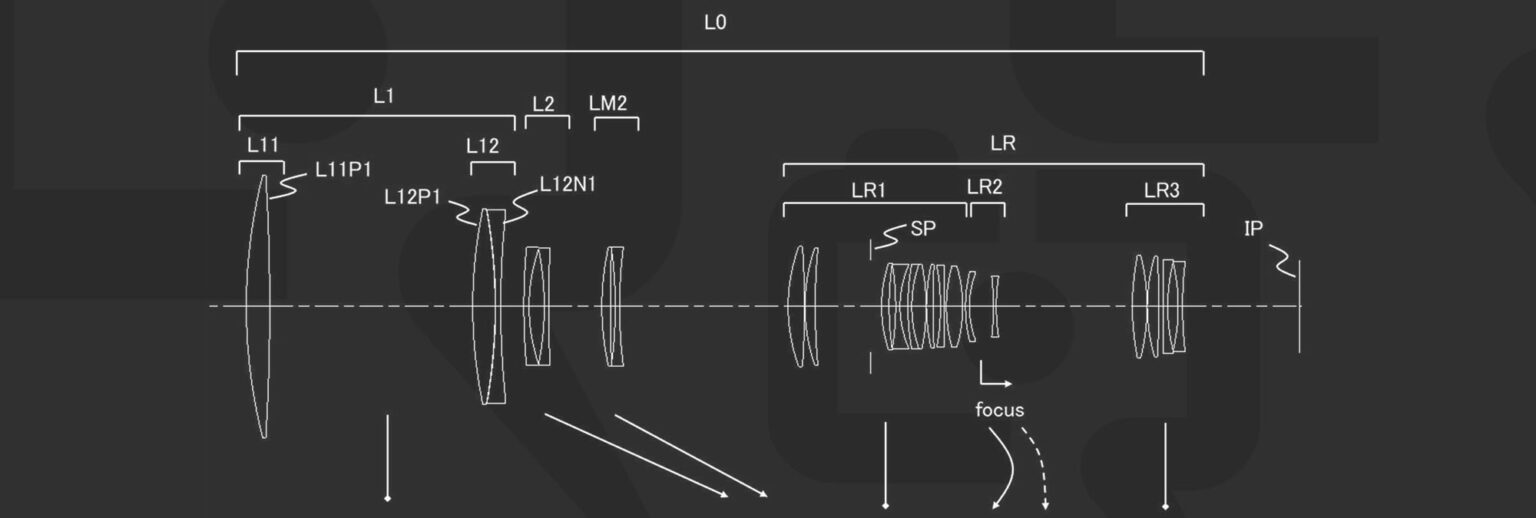

    In this patent application (2024-152941) Canon is researching some super telephoto zooms that are most likely some L’s. All these designs have internal zoom mechanisms and seem very well balanced, with most of the optical elements near the center or rear.

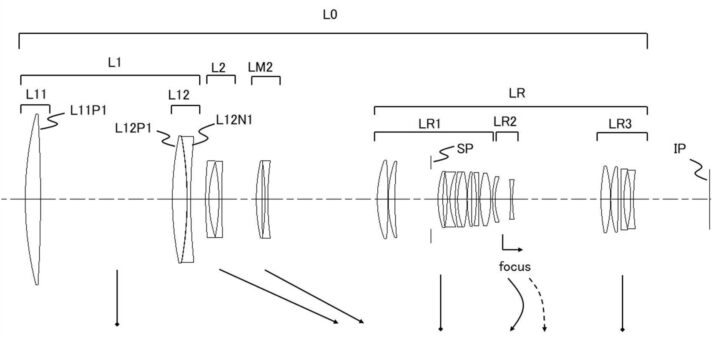

    Canon RF 200-500mm F4L IS USM

    This lens looks interesting and is certainly feasible for Canon to manufacture. We know that there is a lens that is “something” like this in future lens releases. Could this be it? It’s hard to say, but with the amount of elements, and complexity – I can’t help but think this would be an L-level zoom. There’s no mention of IS, but Canon has the flexibility to use almost any element grouping that isn’t part of the focus as the IS assembly. With a 53mm back focus distance, this would easily accept any tele-extender.

    WideMediumTelephoto
    Focal length 206.00 316.02 485.01
    F-number4.09 4.10 4.10
    Half angle (°) 6.00 3.92 2.55
    Image height21.64 21.64 21.64
    Lens length486.99 486.99 486.99
    Back Focus53.96 53.96 53.96

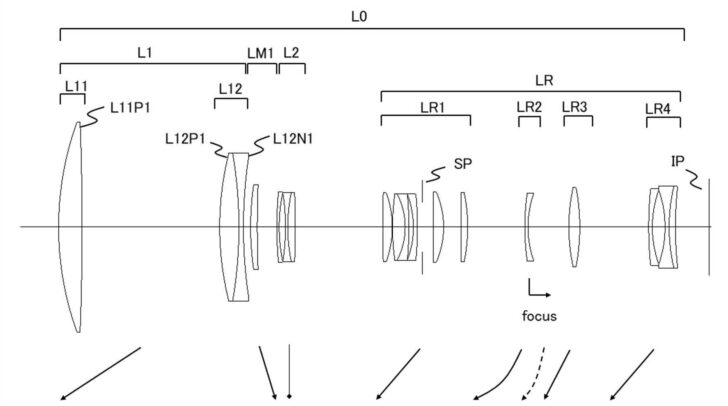

    Canon RF 200-400mm F4 IS USM

    This would be a very traditional lens for Canon to develop, and the observant ones out there may notice that I dropped the “L”. Part of me thinks so because this seems to be a very simplistic optical design, and that usually favours non-L lenses. However, it is a constant 4.0 aperture and those usually are “L” lenses. As with the other examples, this lens with a nearly 44mm back focus distance, could easily accept a tele-extender.

    WideMediumTelephoto
    Focal length 205.00 282.75 390.00
    F-number4.104.10 4.10
    Half angle (°) 6.02 4.38 3.18
    Image height21.64 21.64 21.64
    Lens length367.09 367.09 367.09
    Back Focus46.68 46.68 46.68

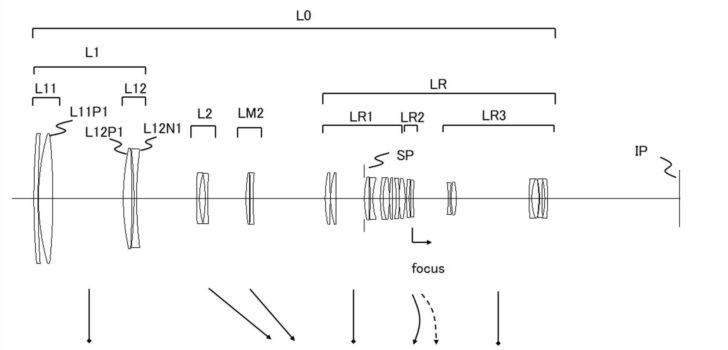

    Canon RF 300-800mm F8L IS USM

    This lens I think is very intriguing. An internal zoom lens with a 300-800 range in a compact form factor. However, with Canon already releasing the Canon RF 300-800mm F6.3-9 IS USM already existing this would be a difficult lens to sell especially when the Canon RF-800mm is very new. As with the other designs, it’s internal zooming, and also a very long back focus distance that would readily accept tele-extenders.

    WideMediumTelephoto
    Focal length 305.00 485.95 774.99
    F-number8.09 8.10 8.10
    Half angle (°) 4.062.55 1.60
    Image height21.64 21.64 21.64
    Lens length489.78 489.78 489.78
    Back Focus100.04 100.04 100.04

    As with all patent applications, this is a look into Canon’s research. These products are embodiments that Canon may or may not develop in the future.
