    Canon Patent Application: Canon Standard Zooms

    By Updated:10 Comments Canon Patents 3 Mins Read

    One thing that Canon has done well with the RF mount is its normal zoom range with the likes of the RF 28-70mm f/2.0L, RF 24-70mm F2.8L, RF 28-70mm f/2.8 STM, RF 24-105mm f/4L, RF 24-105mm F2.8L, and finally the RF 24-105mm F4-7.1 STM. Whew.

    In this patent application (2024-160458) Canon is exploring the designs of some constant aperture fast normal zooms. A point to ponder is that it takes quite a bit of time to take a design from conception to production, and both the RF 24-70mm f/2.8L and the RF 24-105mm F/4L are getting “old” at over 5 and 6 years respectively.

    So it’s entirely possible that Canon is starting to think of the Mark II versions of the existing lenses.

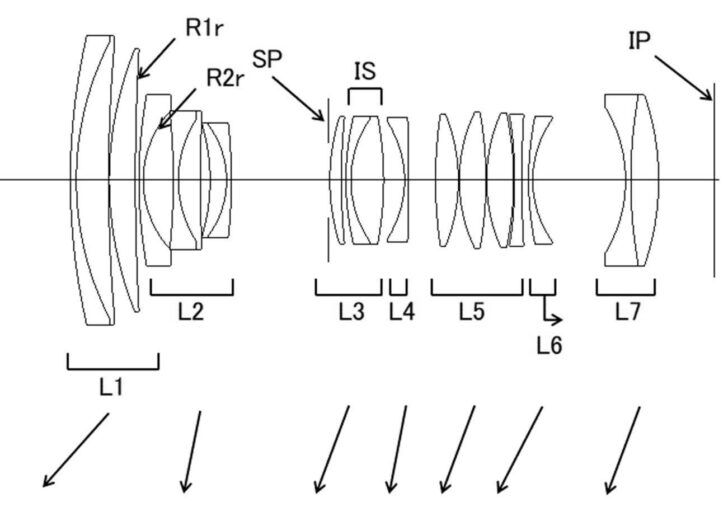

    Canon RF 24-130mm F4 IS

    As previously mentioned, a new version of the Canon RF 24-105 f/4L and expanded to 24-130mm f/4L would be a welcomed addition. This lens does require image stretching on the wide-angle end and seems to be a little tight in terms of back-focus distance. The design seems rather straightforward and around the same elements/groups as the existing 24-105 f/4L, leading me to believe that it wouldn’t necessarily be the most expensive of lenses for Canon to develop. The Canon RF 24-105 f/4L is over 6 years old, so it’s due to be replaced sooner than later.

    WideNormalTelephoto
    Focal Length24.72    71.00   130.99
    F-Number4.08     4.08     4.12
    Half Angle of View37.84    16.95     9.38
    Image Height19.20    21.64    21.64
    Total Lens Length127.91   155.41   182.91
    Back Focus Distance11.19    31.28    47.32

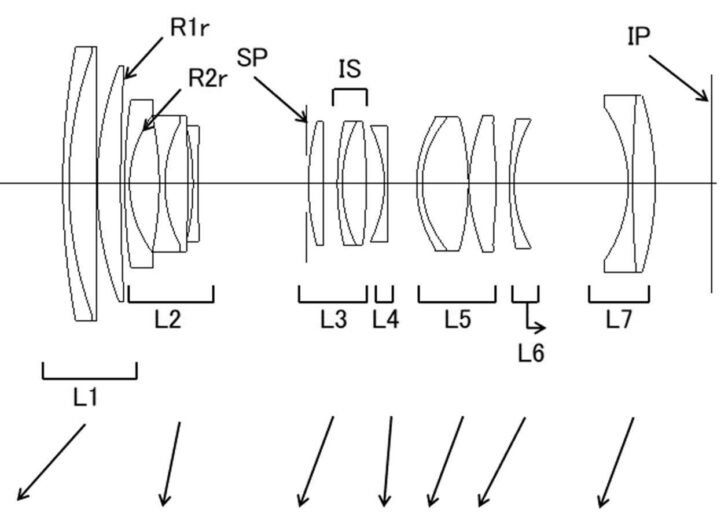

    Canon RF 24-85mm F2.8 IS

    This lens would have been intriguing if we didn’t already have a bazillion in the 28-70mm range for Canon RF. A slight expansion on the 24-75 zoom range, would be welcomed by some. The RF 24-70mm f/2.8L is now over 5 years old, so Canon will be starting to work on its eventual replacement soon. As with most RF standard zoom lenses

    WideNormalTelephoto
    Focal Length24.72        51.54    82.44
    F-Number2.88     2.88     2.91
    Half Angle of View37.91    22.77    14.71
    Image Height19.25    21.64    21.64
    Total Lens Length141.91      160.16   178.40
    Back Focus Distance12.29    28.41    33.22

    As with all patent applications, this is a look into Canon’s research and we may not see products like this in the future.

    Japan Patent Application 2024-160458
