    Canon Patent Application: RF-S 12-30mm F4

    By Updated:5 Comments Canon Patents 2 Mins Read

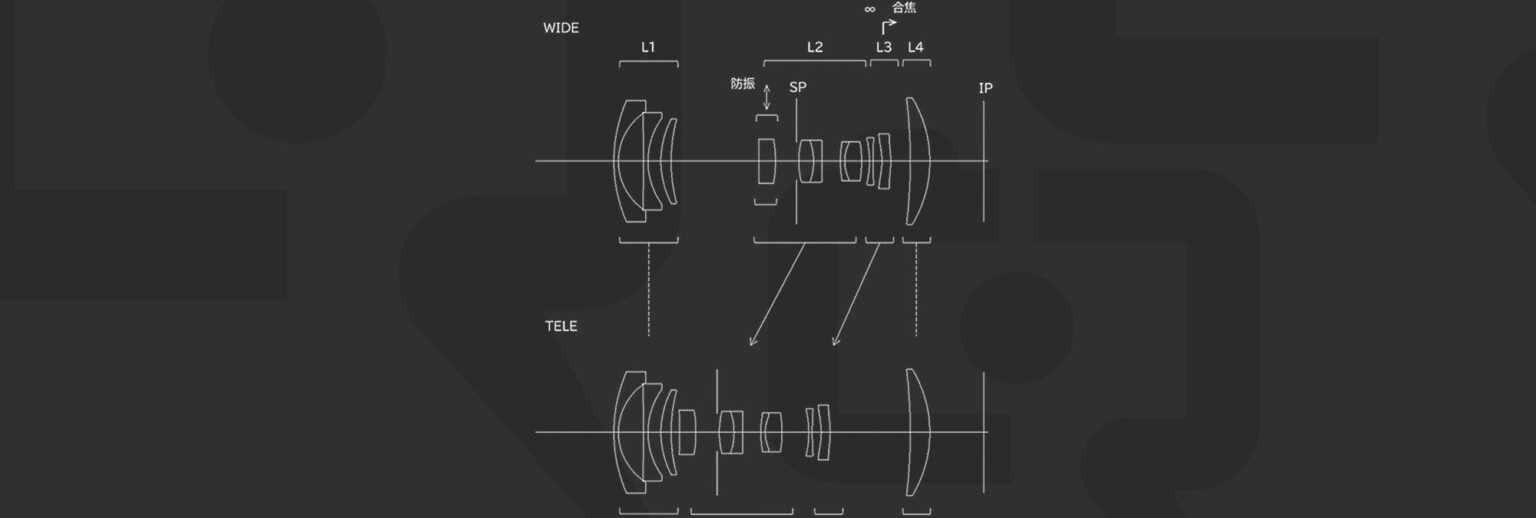

    In this patent application (2024-076793), Canon shows off some embodiments of some lenses with internal zoom and focusing. The first embodiment that I’m going to talk about is a constant 60mm in lens length and a constant F4 aperture 12-30mm lens. The APS-C lens lineup hardly ever gets this kind of love, so it would be nice to see if Canon would do lenses like this.

    Canon RF-S 12-30mm F4

    WideMidTelephoto
    Focal Length12.40 18.69 29.10
    F-Number4.10 4.10 4.10
    Half Angle of View47.76 36.16 25.15
    Image Height11.37 12.86 13.66
    Lens Length (including Focal Plane Distance)82.02 82.02 82.02
    Back Focus Distance12.79 12.79 12.79

    Canon RF-S 12-30mm F4-6.3

    WideMidTelephoto
    Focal Length12.40 18.66 29.10
    F-Number4.10 5.10 6.40
    Half Angle of View47.76 36.21 25.15
    Image Height11.37 12.86 13.66
    Lens Length (including Focal Plane Distance)83.44 83.44 83.44
    Back Focus Distance12.13 12.13 12.13

    Also in the patent application was a curious full frame (with a fair amount of image stretching) 20-40mm.

    Canon RF 20-40mm F4

    WideMidTelephoto
    Focal Length20.92 28.94 39.31
    F-Number4.10 4.10 4.10
    Half Angle of View45.96 36.7828.82
    Image Height18.00 19.62 20.76
    Lens Length (including Focal Plane Distance)91.22 91.22 91.22
    Back Focus Distance112.67 12.67 12.67

    As with all Canon patent applications this may never end up in an actual product, but every now and then, we can dare to dream.

    Source: Japan Patent Application 2024-076793
