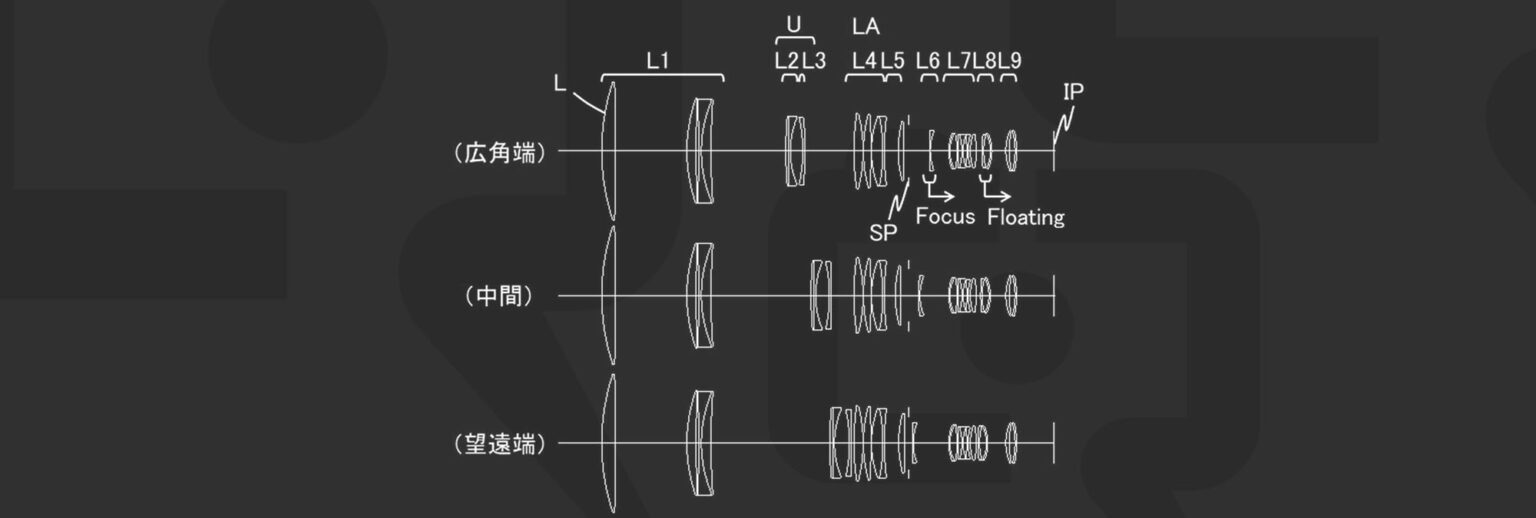

    In this patent application (2024-101302), Canon discusses some unique telephoto lenses. Most of the lenses in here would be eye-watering priced, so hold onto your credit cards. Just in case.

    The primary purpose of this patent application is to explore designs that are reduced in size and weight for the given large aperture.

    According to the present invention, it is possible to provide a zoom lens that is small in size and has a large aperture, yet has high optical performance.

    It should be noticed that even though the back focus distance is fairly relaxed, this is most likely so that these lenses can support teleconverters.

    Canon RF 400-600mm F2.8-4.0

    This is an inner zoom design showing a variable aperture from F2.8 to F4.0, which of course allows it to be a smaller size and weight than a constant aperture F2.8 would be, while still giving you 600mm of telephoto capability. I could see this lens coming to Canon if it wasn’t for the next 300-600mm F2.8-4L embodiment.

    WideMediumTelephoto
    Focal length409.335 505.051 582.738
    F-Number2.880 3.5534.100
    Half Angle of View3.025 2.453 2.126
    Image Height21.635 21.635 21.635
    Lens Length475.002 475.002 475.002
    Back Focus Distance39.500 39.500 39.500

    Canon RF 300-600mm F2.8-4.5L

    I could certainly see Canon making this focal length and aperture as a nice continuation from the Canon RF 100-300mm f/2.8L IS USM. However, there’s another embodiment that I think is a little better near the bottom of this article.

    WideMediumTelephoto
    Focal length306.239 400.502 582.535
    F-Number2.900 3.284 4.600
    Half Angle of View4.041 3.092 2.127
    Image Height21.635 21.635 21.635
    Lens Length475.001 475.001 475.001
    Back Focus Distance41.785 41.785 41.785

    Canon RF 70-300mm F4L

    This is an interesting lens, that expands on the typical 70-200 F4L range and gives it an extra 100mm in focal length. If this was a reasonable price, given the size of only 250mm in your kit bag, and teleconverter capability – Canon would have a very difficult time making enough of these. Consider that this lens is only around 100mm longer than the legendary Canon EF 70-200mm f/4L IS USM. There is still a lot of “space” at 70mm in the optical design, so it’s entirely possible that mechanically, Canon could shrink this lens down even further for storage, and have a twist “unlock” to 70mm.

    WideMediumTelephoto
    Focal length71.997 136.486 291.389
    F-Number4.120 4.120 4.120
    Half Angle of View16.725 9.007 4.246
    Image Height21.63521.635 21.635
    Lens Length276.801 306.083 332.801
    Back Focus Distance39.493 58.857 64.844

    Canon RF 300-600mm F2.8-4.5L

    Of the two 300-600mm designs I like this one a bit more because the back focus distance is a little longer. That allows for more space for a teleconverter assembly.

    WideMediumTelephoto
    Focal length305.975 400.455 582.520
    F-Number2.900 3.300 4.600
    Half Angle of View4.045 3.092 2.127
    Image Height21.63521.635 21.635
    Lens Length475.001 475.001 475.001
    Back Focus Distance47.95747.95747.957

    Canon RF 100-300mm F4L

    If the Canon RF 100-300mm f/2.8L is too big, heavy, or expensive this could be a compelling option.

    WideMediumTelephoto
    Focal length101.052 149.599 291.652
    F-Number4.120 4.120 4.120
    Half Angle of View12.0848.229 4.242
    Image Height21.63521.635 21.635
    Lens Length279.187 298.229 308.962
    Back Focus Distance39.496 46.458 52.523

    While we are never sure which patent applications will make it into production there is some variability between when we see it and if a product is going to appear. However, most times, unless there are serious delays we tend not to see lens applications before the lens comes out.

    So while I would love to say one or all of these are coming, this is simply a look into Canon designs that they are researching at this time.

    Japan Patent Application 2024-101302
