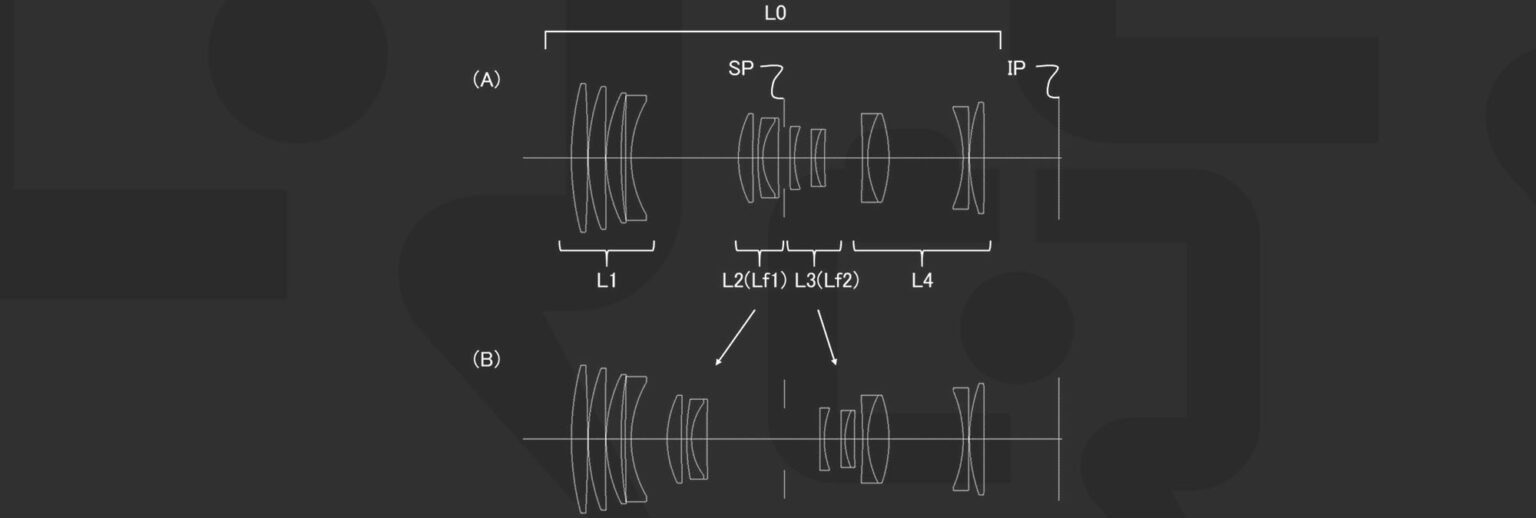

If there’s one thing I’ve heard mention quite a bit is people’s wish for a long focal length macro lens. In this patent application (2024-103311), Canon is exploring just that.
I haven’t seen many patent applications in this category, so maybe it’s a sign of good things to come.
According to Canon;
In optical systems called macro lenses (microlenses) used for close-up photography, a floating method is often adopted in which two or more lens groups are moved during focusing in order to suppress aberration fluctuations during focusing. Another focusing method is an inner focus method in which focusing is performed by moving an intermediate group of the optical system.
For some of the designs, there is a lot of back focus room, so it’s entirely possible that some of the designs with a long back focus could be teleconverter-friendly.
Canon RF 180mm F3.5 1x Macro
The EF version of this lens was announced all the way back in 1996, and its fans have been waiting for a replacement ever since. There were several different embodiments for the 180mm macro in this patent application so we just showed the first one here and one other design later on.
| Focal Length | 179.96 |
| F-Number | 3.60 |
| Half Angle of View | 6.86 |
| Image Height | 21.64 |
| Lens Length | 171.15 |
| Back Focus Distance | 26.35 |
| Magnification | 1x |
Canon RF 300mm F4 1x Macro
This would be a long focal length macro user’s fantasy lens I’m sure. A 300mm F4 Macro lens. It looks big, and also pretty front-heavy, but it certainly would be a lens that no one else has done. It seems like it would support teleconverters.
| Focal Length | 299.99 |
| F-Number | 4.12 |
| Half Angle of View | 4.12 |
| Image Height | 21.64 |
| Lens Length | 210.00 |
| Back Focus Distance | 38.69 |
| Magnification | 1x |
Canon RF 190mm F4 2.x Macro
Expanding on the 1996 design would be a 2x Macro of the same focal length, at a slight penalty of aperture. I think most would think it was worth it.
| Focal Length | 188.87 |
| F-Number | 4.00 |
| Half Angle of View | 6.53 |
| Image Height | 21.64 |
| Lens Length | 188.87 |
| Back Focus Distance | 32.67 |
| Magnification | 2x |
Canon RF 180mm F3.5 1x Macro
This macro lens is another one showing a 180mm focal length, but this one has a much longer back focus distance, which means that, unlike the first embodiment, this one should support teleconverters if Canon wishes to do so.
| Focal Length | 178.66 |
| F-Number | 3.60 |
| Half Angle of View | 6.90 |
| Image Height | 21.64 |
| Lens Length | 160.47 |
| Back Focus Distance | 51.89 |
| Magnification | 1x |
Canon 110mm F4 1x Macro
This example is a compact mirrorless only no-nonsense macro lens, but at F4.0 many I think would want a 2.8 here.
| Focal Length | 110.03 |
| F-Number | 4.12 |
| Half Angle of View | 11.12 |
| Image Height | 21.64 |
| Lens Length | 110.03 |
| Back Focus Distance | 17.52 |
| Magnification | 1x |
It’s been a very long time since Canon has delved into telephoto macros, and while it’s never a sure thing that Canon is going to create one, the presence of a patent application seems to indicate that they are thinking about it.
However, as with all patent applications, this is a look into Canon’s ongoing research.
Japan Patent Application 2024-103311
|
